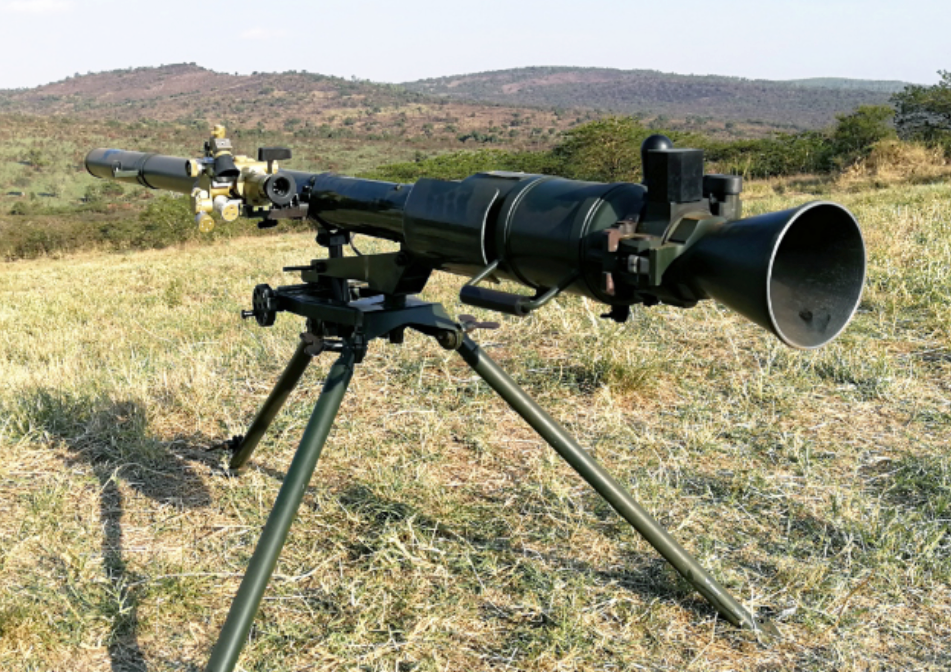

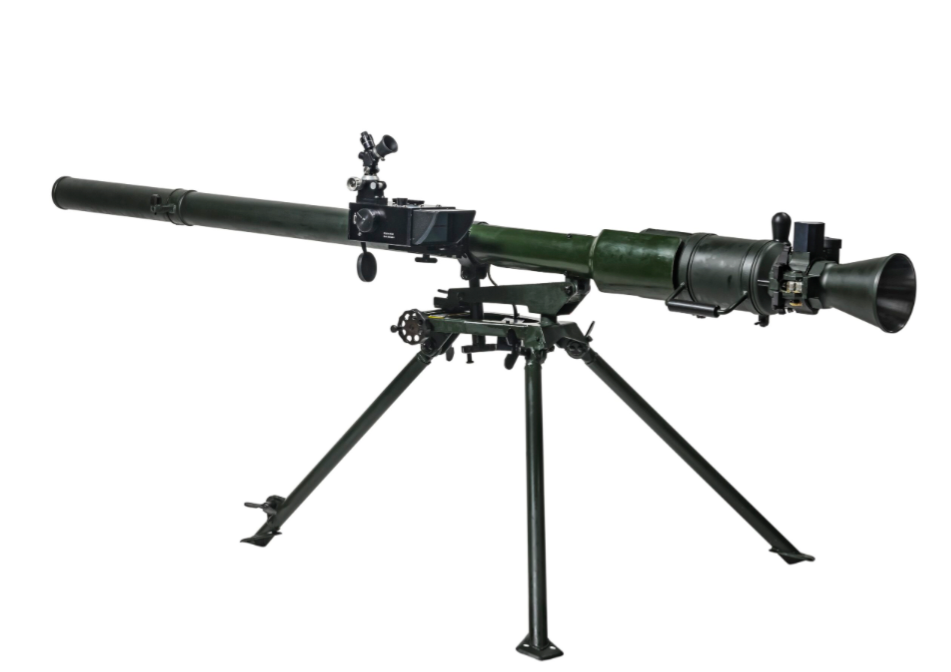

WARRIOR SPG-9 is primarily an anti-armour weapon firing a 73 mm high-explosive anti-tank warhead to ranges exceeding 1 300 m.
The weapon can also fire high-explosive fragmentation ammunition for use against personnel. (to indirect ranges approaching 5 000 m).
Tactical and technical data — WARR. SPG-9
| Parameter | Value |
|---|---|
| Caliber | 73 mm |
| Dimensions L/W/H | 2360/1100/850 mm |
| Weight (unloaded) | 55 kg |
| Direct firing range, Grenade PG-9V | 1300 m |
| Direct firing range, Grenade OG-9V | 800 m |
| Indirect firing range, Grenade OG-9V | 5000 m |
| Muzzle velocity | 700 m/s |
| Ammunition | All types anti-tank, fragmentation, thermobaric grenades intended for 73 mm SPG-9 |

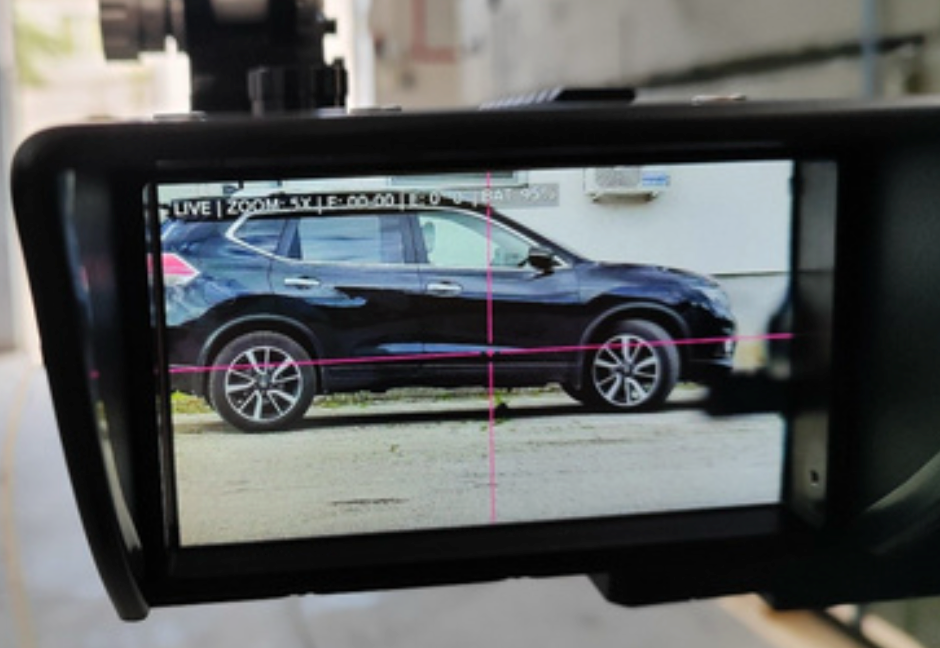

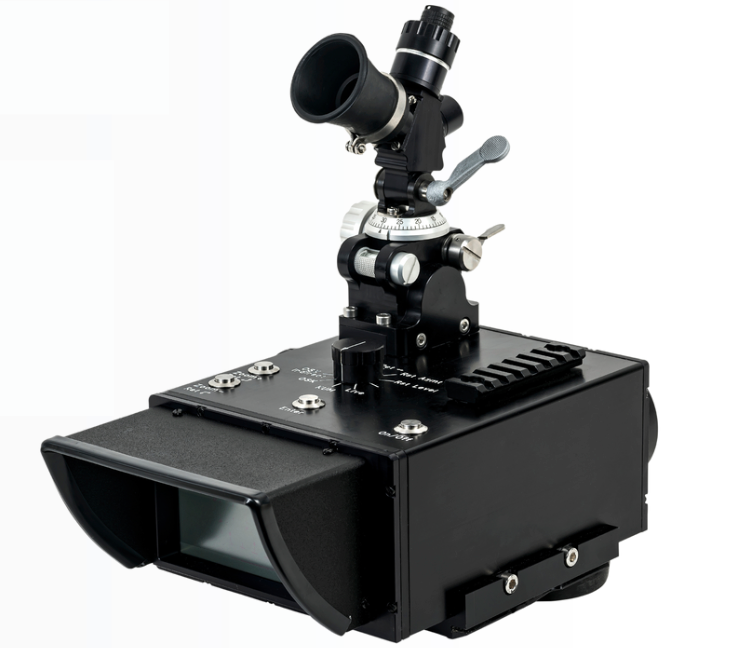

| Sight | The optical-digital sight PGDN-9VIR |
| Other | Including tripod |
