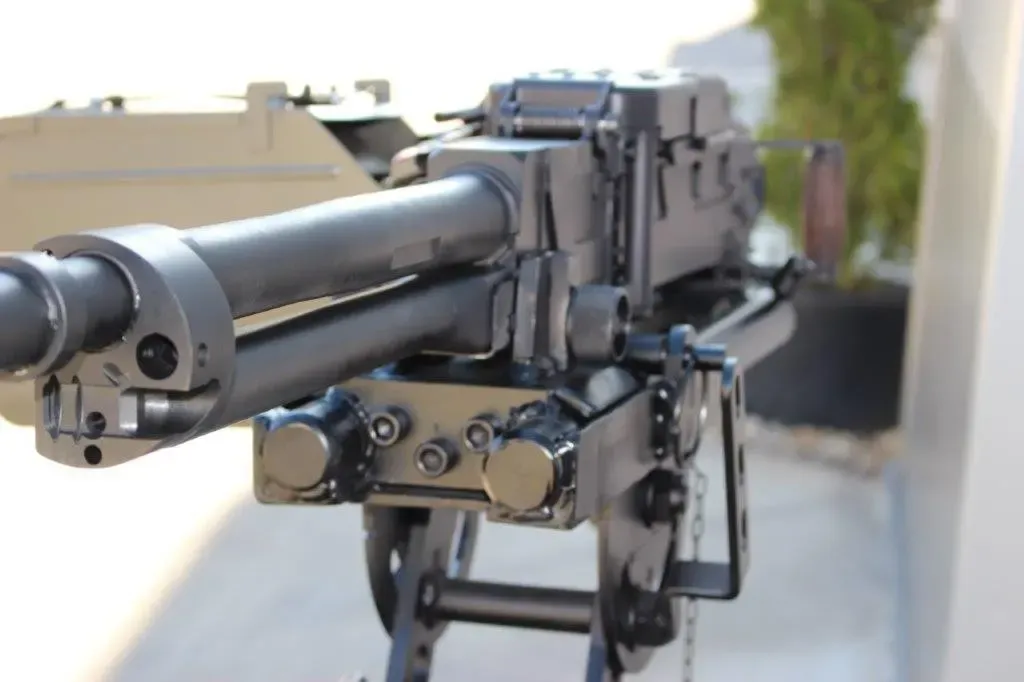

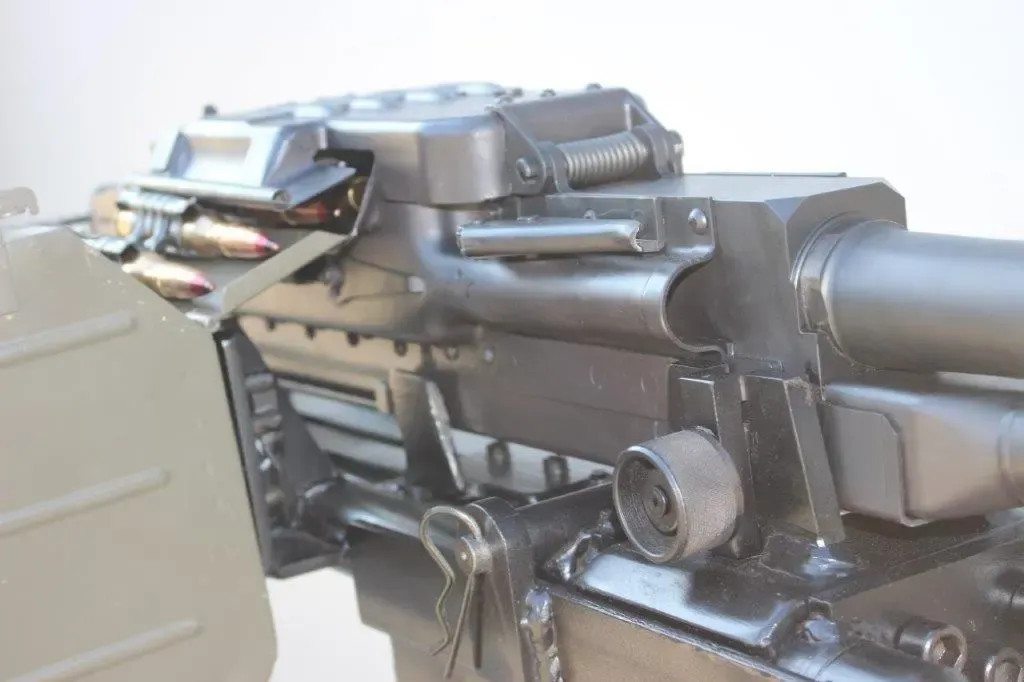

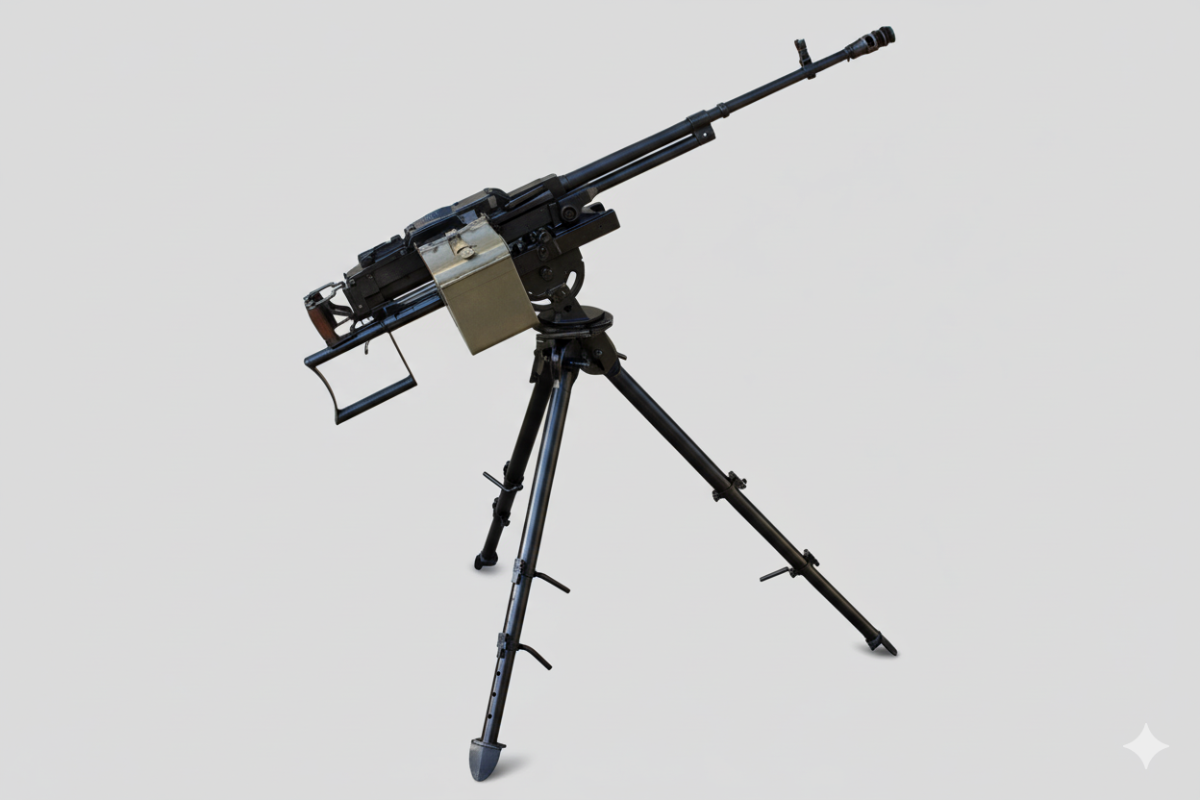

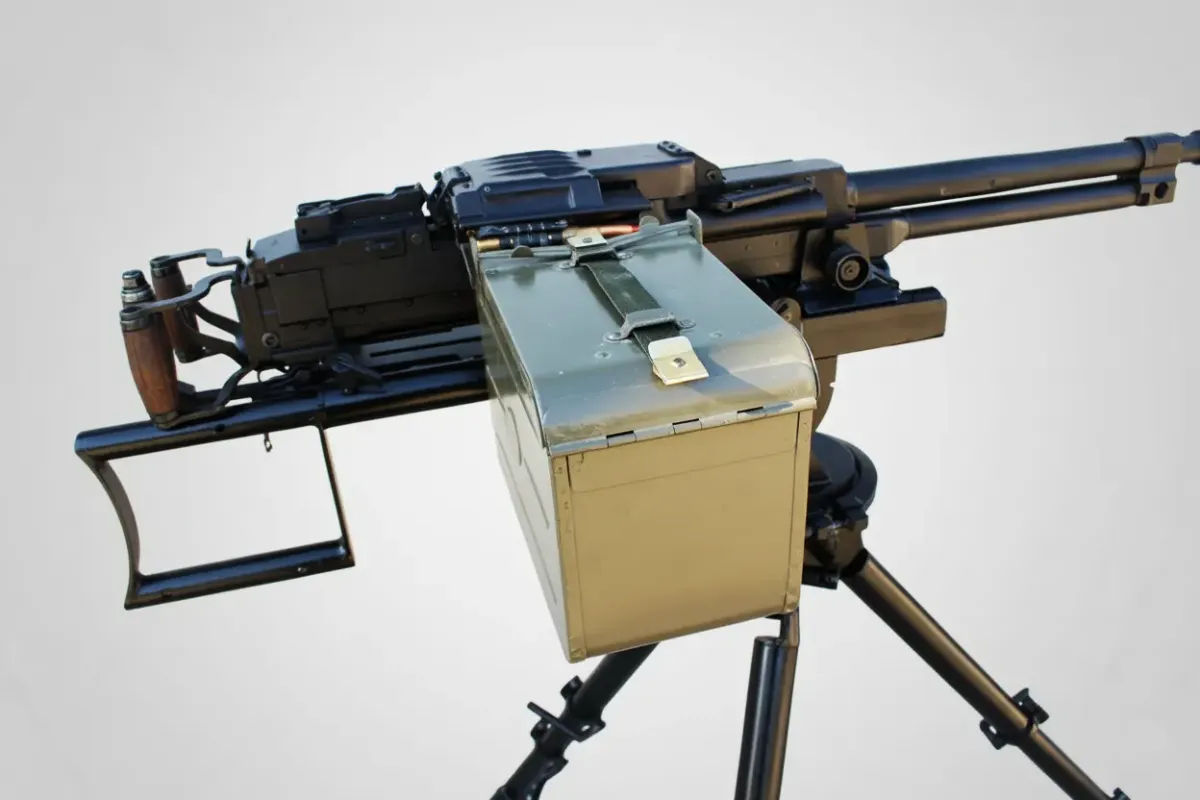

The KA M19 (also referenced as the NSV) is a heavy anti-aircraft machine gun employed on combat vehicles (tanks, armoured personnel carriers) and by mechanized units as a means of air defence and direct fire support. Its primary roles include vehicle self-defence on the move, engagement of aerial targets, and suppression/destruction of light armoured, anti-tank and concentrated ground targets. The weapon is compatible with a wide range of ammunition types (standard, armour-piercing, incendiary and armour-piercing-incendiary), delivering operational flexibility. The design emphasises high rate of fire, long reach and robust operation for integration on fixed and mobile mounts.
See technical data table below for dimensions and performance figures.
Tactical and technical data — KA M19 (NSV)
| Parameter | Value |
|---|---|
| Mass (gun only) | 25 kg |
| Mass on tripod | 41 kg |
| Weight of 50-round belt | 11 kg |
| Length | 1,560 mm |
| Cartridge | 12.7×108 mm / .50 BMG |
| Caliber | 12.7 mm |
| Action | Gas-operated |
| Rate of fire | 700–800 rounds/min |
| Muzzle velocity | 845 m/s |
| Effective firing range (air) | 1,500 m |
| Effective firing range (ground) | 2,000 m |
| Maximum range | up to 6,000 m (manufacturer specification) |
| Feed system | 50-round belt |
| Sights | Iron sights |
