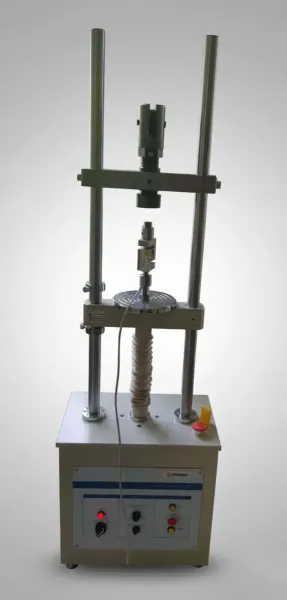

VM-1 Cartridge Pull Test Machine — bullet pull-force tester
The VM-1 pull-force tester is designed to measure the maximum extraction force of bullets from cartridge cases. It enables precise and repeatable determination of the pull force required to separate the projectile from the case. The device features adjustable loading speed and ensures smooth, stable operation even under long-term use. Thanks to its compact dimensions and standard 230 V power supply, it is suitable for both laboratory and production testing.
Basic technical data are listed in the table below.
Basic technical data — VM-1 pull-force tester
| Parameter | Value |
|---|---|
| Width | 410 mm |
| Depth | 260 mm |
| Height | 1040 mm |
| Maximum force | 5 kN / 10 kN |
| Force measurement accuracy | ± 0.5 % |
| Loading speed | 24 – 120 mm/min (step-adjustable) |
| Stroke | max. 200 mm |
| Power supply | 230 V / 50 Hz |
