lightweight version for up to 12.7 mm calibre

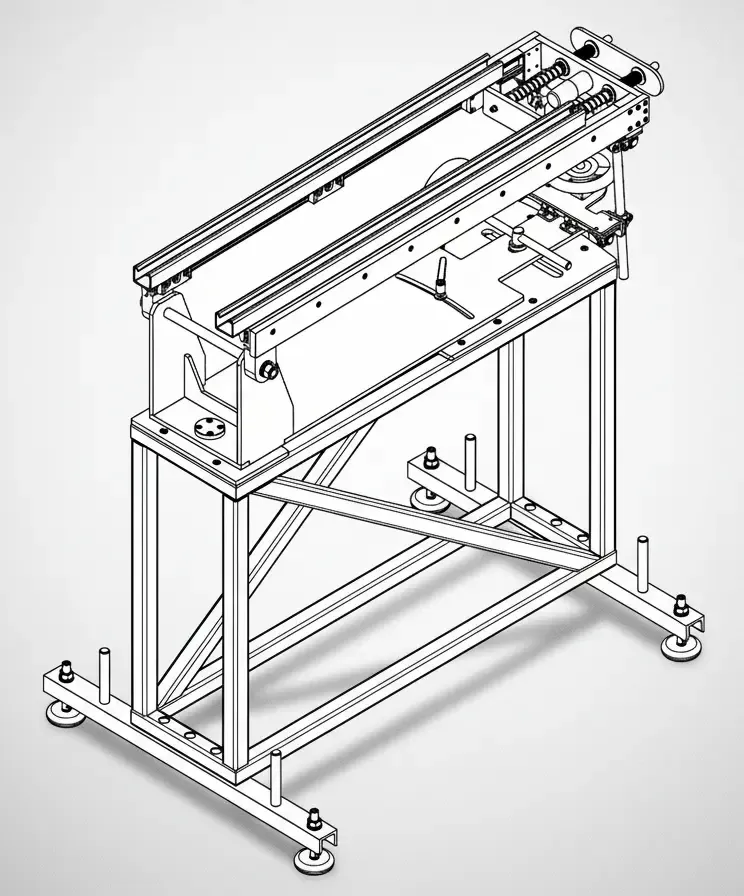

The STZA-12-LW shooting stand is a compact, lightweight version of the universal test stand designed for mounting both short and long firearms. Its modular design allows disassembly into three main parts for easy transport and handling in the field. The stand enables precise azimuth and elevation adjustment and includes a recoil mechanism for weapons up to 12.7 mm calibre. It is suitable for both laboratory testing and field ballistic trials.
Optional clamping systems allow installation of short or long firearms as well as universal breech units UZ-67 and UZ-2002 (via adapter plate – not included in the basic configuration).
Basic technical data are listed in the table below.
Basic technical data — STZA-12-LW
| Parameter | Value |
|---|---|
| Width | 790 mm |
| Length | 1300 mm |
| Height | 1200 mm |
| Weight | 140 kg (disassemblable into three parts) |
| Elevation | −5° to +7° |
| Azimuth | ±6° |
| Recoil system | for calibres up to 12.7 mm |
