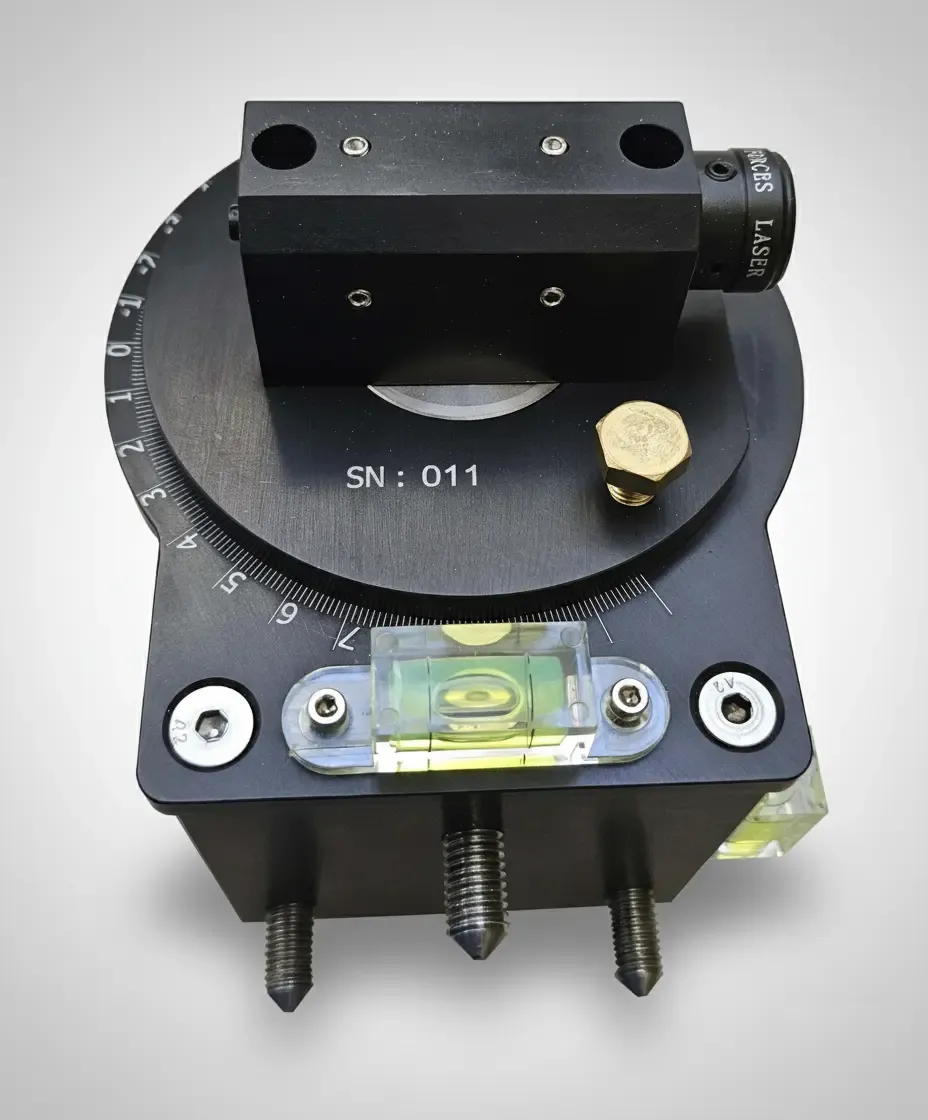

SKLM — inclinometer for impact angle adjustment
The SKLM fixture is a precision inclinometer designed for measuring and setting impact angles during weapon or ballistic equipment calibration. It enables fast and accurate angular adjustment within a ±90° range, with a robust mechanical design ensuring stability and repeatable accuracy. Its compact dimensions and low weight make it suitable for both laboratory and field use.
Basic technical data are listed in the table below.
Basic technical data — SKLM
| Parameter | Value |
|---|---|
| Width | 156 mm |
| Length | 130 mm |
| Height | 120 mm |
| Weight | 1.2 kg |
| Angular range | ±90° |
| Angle adjustment accuracy | ±0.3° |
