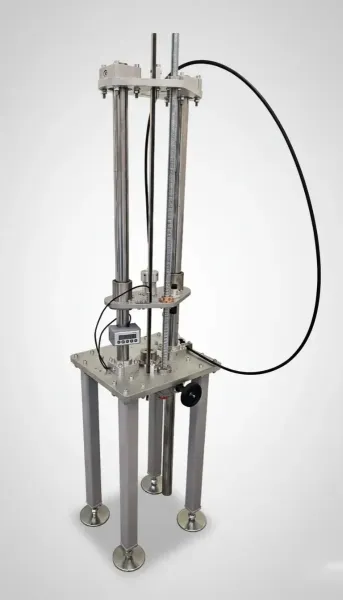

CZS-1 — sensitivity testing device for primers
and primer screws
The CZS-1 testing device is designed for determining the sensitivity of primers and primer screws. It uses a controlled drop-weight mechanism to measure the response to a defined impact. The robust steel frame and precise guiding system ensure repeatable measurements and operator safety. The system provides accurate, reproducible results and is suitable for laboratory testing during primer and ammunition development and verification.
Basic technical data are listed in the table below.
Basic technical data — CZS-1
| Parameter | Value |
|---|---|
| Width | 500 mm |
| Depth | 500 mm |
| Height | up to 2600 mm |
| Drop height | max. 1200 mm |
| Maximum weight | 500 g |
| Total weight | up to 200 kg |
