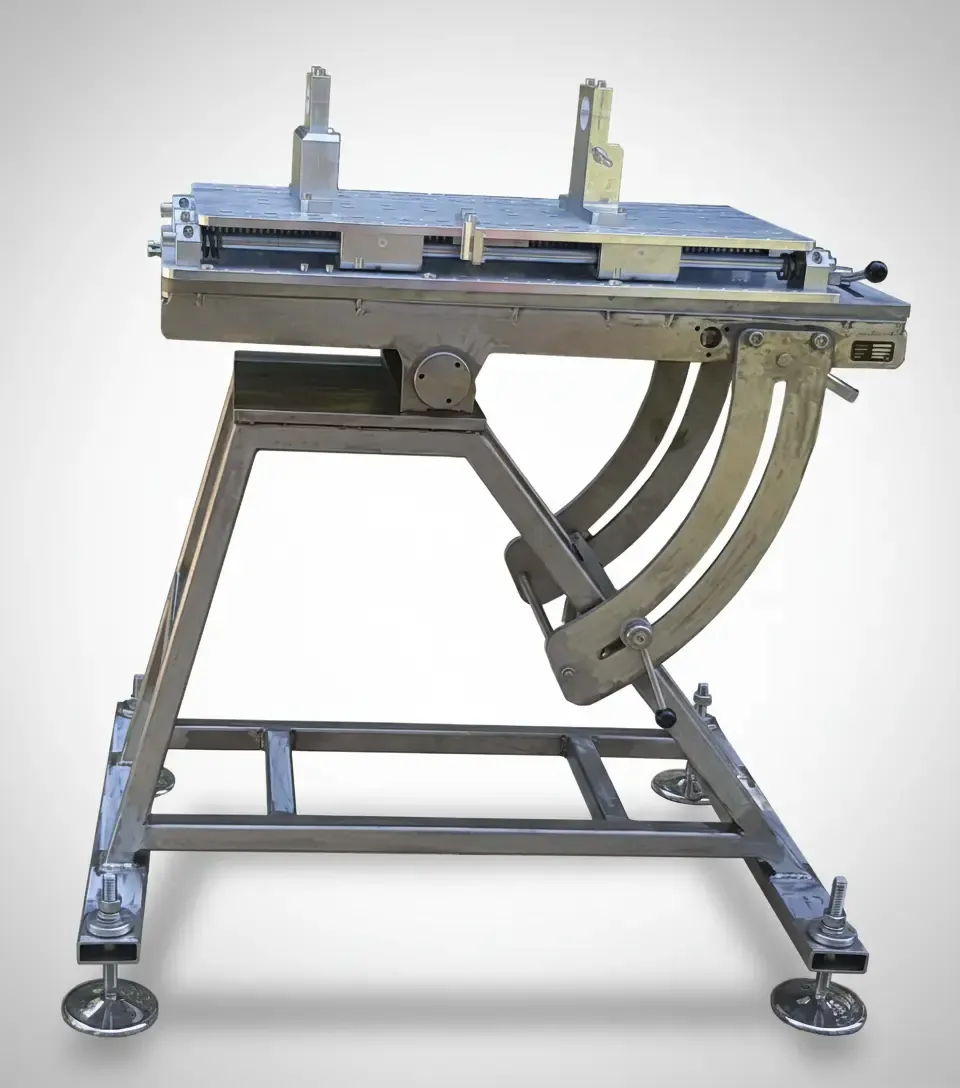

45° Shooting Test Stand — all-stainless-steel design
The 45° shooting test stand is designed for mounting and testing weapons at adjustable angles up to 45°. Its all-stainless-steel construction ensures high rigidity, precision and long service life under repeated loads. The stand provides precise azimuth and elevation adjustment across a wide range and is suitable for ballistic trials and testing of weapons up to 40×53 mm / 12.7×99 mm calibre. Thanks to its versatility, it is used both in test facilities and operational ballistic laboratories.
Basic technical data are listed in the table below.
Basic technical data — 45° shooting stand
| Parameter | Value |
|---|---|
| Width | 960 mm |
| Length | 1320 mm |
| Height | 1250 mm |
| Azimuth range | ± 7° |
| Elevation range | −5° to +48° |
| Calibre | max. 40×53 mm / 12.7×99 mm |
| Weight | 400 kg (without accessories and weights) |
