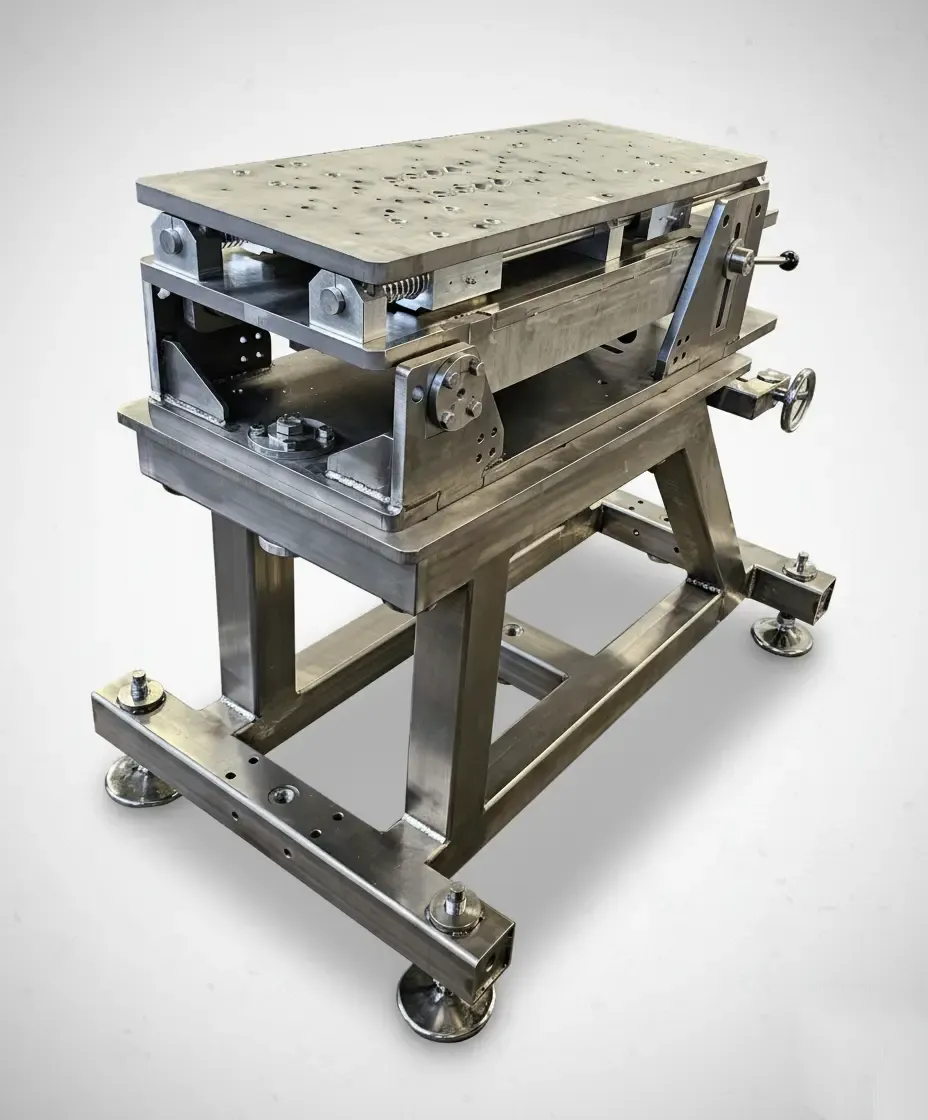

20 mm Shooting Test Stand — stainless steel design
The 20 mm shooting test stand is a robust testing platform designed for mounting and testing weapons up to 20 mm calibre, including FSP (Fragment Simulating Projectile) trials with muzzle velocities up to 1300 m/s. The all-stainless-steel construction ensures long service life, high rigidity and resistance to repeated recoil forces. The stand allows precise azimuth and elevation adjustment within ±7° and features a smooth recoil travel of 150 mm. It is suitable for both laboratory and field ballistic testing as part of weapon development and performance verification.
Basic technical data are listed in the table below.
Basic technical data — 20 mm shooting stand
| Parameter | Value |
|---|---|
| Width | 900 mm |
| Length | 1450 mm |
| Height | 1150 ± 20 mm |
| Azimuth range | ± 7° |
| Elevation range | ± 7° |
| Weight | 710 kg (without accessories) |
| Recoil travel | 150 mm |
| Calibre | up to 20 mm (FSP, muzzle velocity up to 1300 m/s) |
